Tata

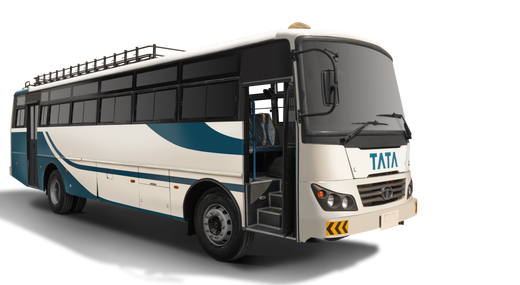

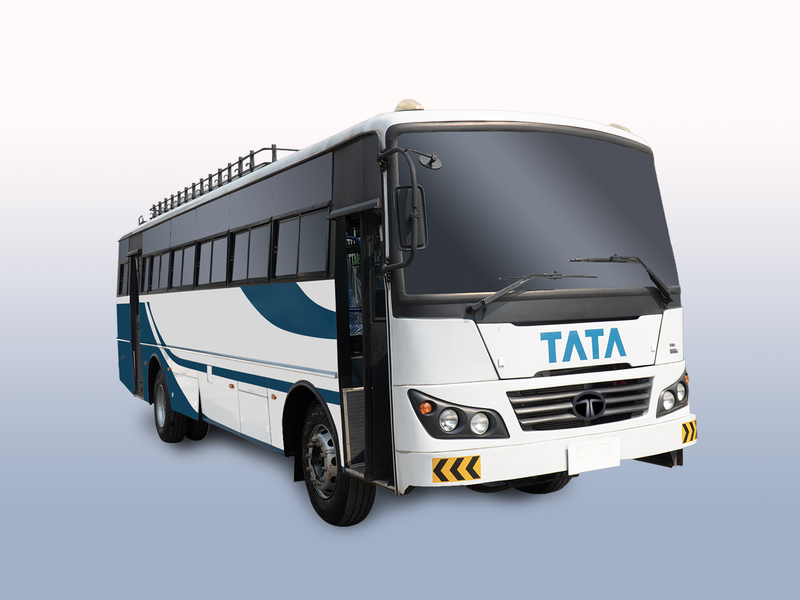

Tata LPO 1318
The Tata Motors buses are made with smart design and remain the ultimate choice for organisations seeking hassle-free conveyance for their staff transportation equipped with safety and comfort for the passengers.
Specifications : Tata LPO 1318
- Model
- Tata LPO 1318
- Engine
- Cummins B 180 20 E2 with water cooled turbo charged inter-cooled diesel engine and 6 inline cylinder. A capacity of 5883 CC with Max. Engine Output : 180 HP @ 2250 rpm and Max. Torque : 654 Nm @ 1500 rpm
- Clutch
- Type: Single plate dry friction type
- GearBox
- Model : G-600 with O.D || No. of gears: 6 Forward, 1 Reverse
- Dimensions
- Wheel Base : 5545mm || Overall Length : 11metres || Max. Width : 2.6metres || Max. Height : 3.2metres || Max. permissible FAW : 6000 kg || Max. permissible RAW : 10200 kg || Max. permissible GVW : 16200 kg
- Fuel Tank & Electrical Systems
- Capacity : 250 Litres Diesel
Battery : 24V , 180Ah || Alternator Capacity : 90Ah - Brakes
- Service brakes : Full air S-Cam brake || Parking brakes : Hand operated type- Spring actuated parking brake acting on rear wheels || Brake drum diameter : 410 mm
- Axle
- Front Axle : Heavy duty forged I beam, reverse Elliot type || Rear Axle : Tata RA- 109 RR, Single reduction hypoid gears, fully floating axle shafts
- Wheel Base
- Tyres : 11 R x 22.5-16 PR Diagonal ply || Wheel rims : 8.25 x 22.5 || No. of wheels : Front - 2, Rear - 4, Spare - 1
- Suspension
- Type: Semi elliptical leaf spring at front and rear || Shock Absorbers : Hydraulic double acting telescopic type at front and rear || Anti roll bar : At front axle
- Performance
- Max. climbing ability in 1st gear: 30% || Max. geared speed in top gear : 96 Kmph || Minimum turning circle diameter : 20.4 metres
