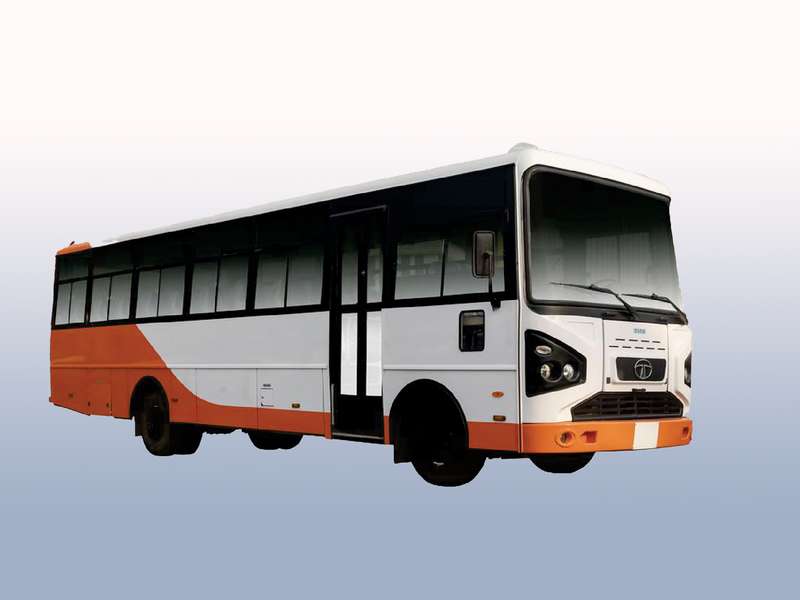

Tata LPO 913
Tata

Tata LPO 913

Tata LPO 913

Description

Designed with features that provide safety and comfort to the commuters, the Tata Motors buses provide a seating capacity of 38 passengers.

Caractéristiques

Steering : Power steering

Specifications Techniques

Moteur
Engine Type : Tata 697 TCIC E2 || Engine Capacity : 5675 cc || Max. Power : 128 Hp @ 2400 rpm || Torque : 416 Nm @ 1400 - 1700 rpm
Embrayage
Type : Single Plate dry friction type || Outside Diameter : 310 mm
Boite de Vitesses
Model : GBS - 40 Synchromesh || No. of Gears : 5 F + 1 R
Roues
Tyres : 8.25 x 16 -14 PR || No. of Wheels : 2 - Front, 4 - Rear and 1 Spare
Essieux
-
Freins
Service Brakes : Dual circuit full air S-cam brakes - ABS || Parking Brakes : Spring actuated parking brake acting on rear wheels || Engine Exhaust Brake : Couple with service brake || Front / Rear Type : Drum/ Drum
Reservoir
160 Litres, Diesel
Suspension
Type : Semi elliptical leaf spring at front and rear with anti-roll bar
Dimensions
Wheel Base : 4920 mm || Track - Front / Rear : 1665 mm / 1622 mm || Overall bus length : 9300 mm || Overall bus width : 2200 mm || Overall Height : 3100 mm || Max FAW : 3000 kgs || Max. RAW : 6000 kgs || Max. GVW : 9000 kgs
Performance
Max. Geared Speed in Top Gear : 107 kmph || Max. climbing ability in 1st Gear : 29 % || Min. Turning Circle Diameter : 17.5 m
Electrique
24 Volts Battery
Places / Portes
38+1 seats - 2 doors
BusTransport

Type

Transport
