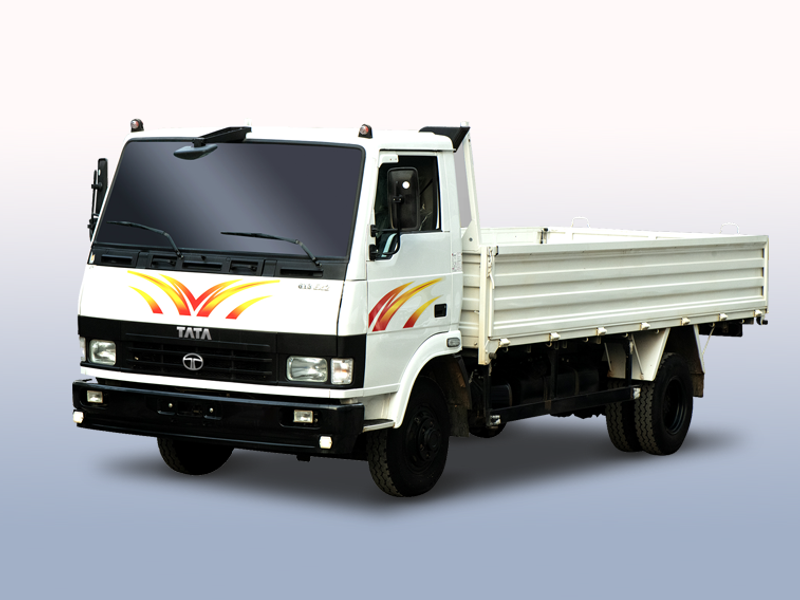

Tata Lpt 613
From the wide range of Tata's light commercial trucks comes the Tata LPT 613, loaded with a 607 turbo charged, 6-cylinder engine and a payload capacity up to 4.5 tonnes. Standard features include the mechanical suspended driver seat, power steering, clutch booster, the soft touch steering wheel, and proximity and wide angle mirrors
Specifications : Tata Lpt 613
- Model
- Tata Lpt 613
- Engine
- Engine type : Tata 697 NA with a capacity of 5675 cc || Max output : 118 kw @ 2800 rpm || Max Torque : 363 Nm @ 1500 - 2000 rpm
- Clutch
- Single plate dry friction type
- GearBox
- GBS-40 synchronized || 5 + 1 Gears with provision for optional PTO
- Dimensions
- Wheelbase : 3400 mm - 3800 mm || Total length : 6210 mm - 6875 mm || Max. width : 2155 mm || Max. height : 2341 mm || Front overhang : 1275 mm
- Fuel Tank & Electrical Systems
- 120 Litres Capacity
Fully reclining forward cabin - Brakes
- Service Brake : Dual circuit S cam brakes || Spring loaded parking brake on rear wheels and engine exhaust linked to service brake.
- Axle
- Front axles : Forced powder in I inverted Elliot type || Rear axles : Single reduction, hypoid gears axle shaft oscillators
- Wheel Base
- Number of wheels : 2 Front - 4 Rear and 1 Reserve with 7.50 R x 16-14 PR tyres
- Suspension
- Semi elliptical leaf spring at front and rear with auxiliary springs at rear only and Hydraulic double-acting telescopic type at front and rear shock absorbers
- Performance
- Max speed in the top gear : 119 kmph || Climbing capacity max. in 1st gear : 30.60% || Turning radius min circle dia : 15.4 m
