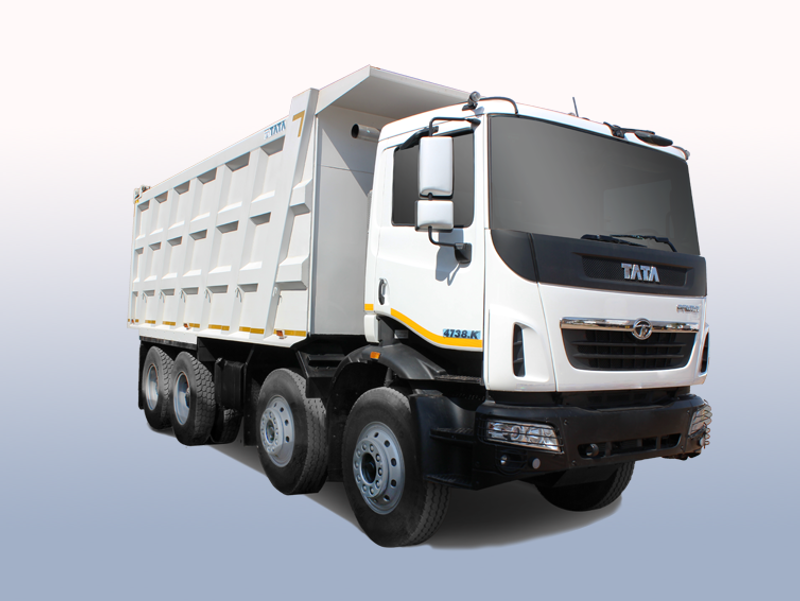

Tata Prima 4738.K Tipper
The Tata Motors’ Prima trucks have been built with best-in-class auto technology to provide a world-class trucking experience. Engineered for performance in the toughest conditions, the Prima range also has an array of features for driving comforts such as ergonomic controls, seat adjustment, minimum noise emissions and HVAC.
Specifications : Tata Prima 4738.K Tipper
- Model
- Tata Prima 4738.K Tipper
- Engine
- Cummins 8.9L ISLe 375 Euro-III with Max Power: 375 BHP @ 2100 rpm and 1500 Nm @ 1200-1400 rpm
- Clutch
- Pneumatic assisted 430 mm Organic
- GearBox
- Type : Eaton ES15409-DD 9 Speed
- Dimensions
- Wheel Base : 5250 mm || Front Track : 2038 mm || Rear Track : 1900 mm || TCD : 22274 mm || TCCD : 20710 || Ground Clearance : 358 mm || Overall Length : 9257 mm || Overall Width : 2593 mm || Overall Height : 3682 mm
- Fuel Tank & Electrical Systems
- 260 L Rectangular Shape
- - Brakes
- Full Air Dual circuit - S Cam with ABS & Auto Slack Adujster with 410 x 220 Brake Drum Dia (mm) and Engine Level Jake Brake
- Axle
- Front Axle : I Beam - 7.5T X 2 || Rear Axle : RA 210 HRT with RAR : 5.246 and RAW : F-16, R-16
- Wheel Base
- Tyre size : 12 R24 - Construction with Wheel Rims : 8.50 - 24
- Suspension
- Perabolic -20T at Front and 48T - Two Spring balance beam bogie with semi elliptic multi leaf rubber mounted springs, torque rods and v rods at Rear
- Performance
- Max. Gradeability : 36% (@ 1st Gear) || Max Gradeability : 54 % (@ Crawler Gear) and Top Speed of 85 Kmph
